15. Performance Tuning

Overview

There are numerous different levels we can fine tuning.

Spark Network

If we have an extremely fast network, we would make many Spark jobs faster (Shuffles are so often of the costlier steps).

There are a variety of different part to optimize, such as:

• Code-level design choices (e.g., RDDs versus DataFrames)
• Data at rest
• Joins Aggregations
• Data in flight
• Individual application properties
• Inside of the Java Virtual Machine (JVM) of an executor
• Worker nodes
• Cluster and deployment properties There are numerous things on both side of the indirect (setting configuration values or changing the runtime environment) versus direct (change execution or design choices at the individual Spark job, stage or task level).

The best thing we can do to figure out how to improve performance

Implement good monitoring and job history tracking.

Indirect Performance Enhancements

This part will skip the obvious ones like “improve hardware” and only focus more on the things within your control

Design Choices

When designing the application, if we making good design choices, it not only help to write better Spark applications, but also to get them to run in a more stable and manner over time.

Scala vs Java vs Python vs R

This question is nearly impossible to answer in the general sense because a lot will depend on your use case.

Machine Learning

If you want to perform some single-node machine learning after performing a large ETL job, we might recommend running your Extract, Transform, and Load (ETL) code as SparkR code and then using R’s massive machine learning ecosystem to run your single-node machine learning algorithms. This gives you the best of both worlds and takes advantage of the strength of R as well as the strength of Spark without sacrifices.

Spark's Structure APIs

They are consistent across languages in term of speed and stability.

However, when you need to include custom transformations that can’t be created in Structured APIs, you must do it with RRD transformations or UDFs. Therefore, you can’t use python or R as the best choice simply. (Working with Different Typesof Data)

DataFrames vs SQL vs Datasets vs RDDs

Across all languages, DataFrames, Datasets, and SQL are equivalent in speed.

Optimization

If you want to optimize for pure performance, it would behoove you to try and get back to DataFrames and SQL as quickly as possible. Although all DataFrame, SQL, and Dataset code compiles down to RDDs, Spark’s optimization engine will write “better” RDD code than you can manually and certainly do it with orders of magnitude less effort. Additionally, you will lose out on new optimizations that are added to Spark’s SQL engine every release.

Using Scala or Java to interact RDD

When Python runs RDD code, it’s serializes a lot of data to and from the Python process. This is very expensive to run over very big data and can also decrease stability.

Object Serialization in RDDs

When you’re working with custom data types, you’re going to want to serialize them using Kryo (Advanced RDDs) because it’s both more compact and much more efficient than Java serialization. However, this does come at the inconvenience of registering the classes that you will be using in your application. Documentation: Kryo

Cluster Configurations

This part is huge potential benefits for Spark optimization.

• Cluster/application sizing and sharing.
• Dynamic allocation: Spark provides a mechanism to dynamically adjust the resources your application occupies based on the workload (The application can give resources back to the cluster if they no longer used, and request them again later when there is demand).

Scheduling

You can take advantage of to either help Spark jobs run in parallel with scheduler pools or help Spark applications run in parallel with something like dynamic allocation or setting max-executor-cores. Scheduling optimizations do involve some research and experimentation, and unfortunately there are not super-quick fixes beyond setting spark.scheduler.mode to FAIR to allow better sharing of resources across multiple users, or setting —max-executor-cores, which specifies the maximum number of executor cores that your application will need. Documentation: Job Schedulinng

Data at Rest

When you’re saving data it will be read many times as other folks in your organization access the same datasets in order to run different analyses. Making sure that you’re storing your data for effective reads later on is absolutely essential to successful big data projects. This involves choosing your storage system, choosing your data format, and taking advantage of features such as data partitioning in some storage formats.

File-based long-term data storage

Generally, you should use Parquet format to ensure data compression and schema and get more efficient performance.

Splittable file types and compression

Whatever file format, you should make sure it is splittable, based on that Spark can read different parts of the file in parallel. Additionally, you also should combine with compress the data to save efficiently data storage.

Table partitioning

Table partitioning refers to storing files in separate directories based on a key, such as the date field in the data. Storage managers like Apache Hive support this concept, as do many of Spark’s built-in data sources. Partitioning your data correctly allows Spark to skip many irrelevant files when it only requires data with a specific range of keys.

Avoid partition at too fine a granularity

It can result in many small files, and a great deal of overhead trying to list all the files in the storage system.

Bucketing

Bucketing your data allows Spark to “pre-partition” data according to how joins or aggregations are likely to be performed by readers. This can improve performance and stability because data can be consistently distributed across partitions as opposed to skewed into just one or two.

Using bucketing

Joins are frequently performed on a column immediately after a read, you can use bucketing to ensure that the data is well partitioned according to those values. This can help prevent a shuffle before a join and therefore help speed up data access.

Bucketing and Partitioning

Bucketing generally works hand-in-hand with partitioning as a second way of physically splitting up data.

The number of files

In addition, beside bucketing and partitioning, you also consider about the number of files and the size of files that you’re storing. If there are lots of small files, you’re going to pay a price listing and fetching each of those individual files.

Example

If you’re reading a data from Hadoop Distributed File System (HDFS), this data is managed in blocks that are up to 128 MB in size (by default). This means if you have 30 files, of 5 MB each, you’re going to have to potentially request 30 blocks, even though the same data could have fit into 2 blocks (150 MB total).

We will trade-off:

• Having lots of small files is going to make the scheduler work much harder to locate the data and launch all of the read tasks. This can increase the network and scheduling overhead of the job.
• Having fewer large files eases the pain off the scheduler but it will also make tasks run longer.

Recommend the size of files

In general, we recommend sizing your files so that they each contain at least a few tens of megatbytes of data.

Control the number of records in a file

To control how many records go into each file, you can specify the maxRecordsPerFile option to the write operation.

Data locality

This part is really important for your consideration. Data locality basically specifies a preference for certain nodes that hold certain data, rather than having to exchange these blocks of data over the network. If you run your storage system on the same nodes as Spark, and the system supports locality hints, Spark will try to schedule tasks close to each input block of data.

HDFS storage

There are several configurations that affect locality, but it will generally be used by default if Spark detects that it is using a local storage system. You will also see data-reading tasks marked as “local” in the Spark web UI.

Statistics collection

Spark includes a cost-based query optimizer that plans queries based on the properties of the input data when using the structured APIs. However, to allow the cost-based optimizer to make these sorts of decisions, you need to collect (and maintain) statistics about your tables that it can use. There are 2 kind of statistics:

• Table-level
• Column-level To collect table-level statistics, you can run the following command:

ANALYZE TABLE table_name COMPUTE STATISTICS

To collect column-level statistics, you can name the specific columns:

ANALYZE TABLE table_name COMPUTE STATISTICS FOR COLUMNS column_name1, column_name2, ...

Column-level statistics

Column-level statistics are slower to collect, but provide more information for the cost-based optimizer to use about those data columns. Both types of statistics can help with joins, aggregations, filters, and a number of other potential things (e.g., automatically choosing when to do a broadcast join). This is a fast-growing part of Spark, so different optimizations based on statistics will likely be added in the future.

Shuffle Configurations

This part can often increase performance because it allows nodes to read shuffle data from remote machines even when the executors on those machines are busy (e.g., with garbage collection). Beyond configuring this external service, there are also a number of configurations for shuffles, such as the number of concurrent connections per executor, although these usually have good defaults.

RDD-based jobs

The serialization format has a large impact on shuffle performance—always prefer Kryo over Java serialization.

The number of partions

If you have too few partitions, then too few nodes will be doing work and there may be skew, but if you have too many partitions, there is an overhead to launching each one that may start to dominate. Try to aim for at least a few tens of megabytes of data per output partition in your shuffle

How to choose exactly the number of partition for Spark job?

Memory Pressure and Garbage Collection

This may occur when an application takes up too much memory during execution or when [garbage collection](../../../1. Capture/18.garbage collection) runs too frequently or is slow to run as large numbers of objects are created in the JVM and subsequently garbage collected as they are no longer used.

Tip

One strategy for easing this issue is to ensure that you’re using the Structured APIs as much as possible. These will not only increase the efficiency with which your Spark jobs will execute, but it will also greatly reduce memory pressure because JVM objects are never realized and Spark SQL simply performs the computation on its internal format.

Measuring the impact of garbage collection

The first step in garbage collection tuning is to gather statistics on how frequently garbage collection occurs and the amount of time it takes. You can do this by adding -verbose:gc - XX:+PrintGCDetails -XX:+PrintGCTimeStamps to Spark’s JVM options using the spark.executor.extraJavaOptions configuration parameter. The next time you run your Spark job, you will see messages printed in the worker’s logs each time a garbage collection occurs. These logs will be on your cluster’s worker nodes (in the stdout files in their work directories), not in the driver.

Garbage collection tuning

The first thing, we need to understand some basic information about memory management in the JVM:

• Java heap space is divided into two regions: Young and Old. The Young generation is meant to hold short-lived objects whereas the Old generation is intended for objects with longer lifetimes.
• The Young generation is further divided into three regions: Eden, Survivor1, and Survivor2. Here’s a simplified description of the garbage collection procedure:

1. When Eden is full, a minor garbage collection is run on Eden and objects that are alive from Eden and Survivor1 are copied to Survivor2.
2. The Survivor regions are swapped.
3. If an object is old enough or if Survivor2 is full, that object is moved to Old.
4. Finally, when Old is close to full, a full garbage collection is invoked. This involves tracing through all the objects on the heap, deleting the unreferenced ones, and moving the others to fill up unused space, so it is generally the slowest garbage collection operation.

Garbage collection tuning in Spark

The goal of garbage collection tuning in Spark is to ensure that only long-lived cached datasets are stored in the Old generation and that the Young generation is sufficiently sized to store all short-lived objects. This will help avoid full garbage collections to collect temporary objects created during task execution.

Here are some steps that might be useful:

• Gather garbage collection statistics to determine whether it is being run too often. If a full garbage collection is invoked multiple times before a task completes, it means that there isn’t enough memory available for executing tasks, so you should decrease the amount of memory Spark uses for caching (spark.memory.fraction).
• If there are too many minor collections but not many major garbage collections, allocating more memory for Eden would help. You can set the size of the Eden to be an over-estimate of how much memory each task will need. If the size of Eden is determined to be E, you can set the size of the Young generation using the option -Xmn=4/3*E. (The scaling up by 4/3 is to account for space used by survivor regions, as well.)

Example

If your task is reading data from HDFS, the amount of memory used by the task can be estimated by using the size of the data block read from HDFS. Note that the size of a decompressed block is often two or three times the size of the block. So if you want to have three or four tasks’ worth of working space, and the HDFS block size is 128 MB, we can estimate size of Eden to be 43,128 MB.

• Try the G1GC garbage collector with -XX:+UseG1GC. It can improve performance in some situations in which garbage collection is a bottleneck and you don’t have a way to reduce it further by sizing the generations. Note that with large executor heap sizes, it can be important to increase the G1 region size with -XX:G1HeapRegionSize.
• Monitor how the frequency and time taken by garbage collection changes with the new settings.

Summary

The effect of garbage collection tuning depends on your application and the amount of memory available. There are many more tuning options described online, but at a high level, managing how frequently full garbage collection takes place can help in reducing the overhead. You can specify garbage collection tuning flags for executors by setting spark.executor.extraJavaOptions in a job’s configuration.

Direct Performance Enhancements

Parallelism

The first thing you should do whenever trying to speed up a specific stage is to increase the degree of parallelism. In general, we recommend having at least two or three tasks per CPU core in your cluster if the stage processes a large amount of data. You can set this via the spark.default.parallelism property as well as tuning the spark.sql.shuffle.partitions according to the number of cores in your cluster.

Improved Filtering

Another frequent source of performance enhancements is moving filters to the earliest part of your Spark job that you can. Sometimes, these filters can be pushed into the data sources themselves and this means that you can avoid reading and working with data that is irrelevant to your end result. Enabling partitioning and bucketing also helps achieve this. Always look to be filtering as much data as you can early on, and you’ll find that your Spark jobs will almost always run faster.

Repartitioning and Coalescing

Repartition calls can incur a shuffle. However, doing some can optimize the overall execution of a job by balancing data across the cluster, so they can be worth it. In general, you should try to shuffle the least amount of data possible. For this reason, if you’re reducing the number of overall partitions in a DataFrame or RDD, first try coalesce method, which will not perform a shuffle but rather merge partitions on the same node into one partition. The slower repartition method will also shuffle data across the network to achieve even load balancing. Repartitions can be particularly helpful when performing joins or prior to a cache call. Remember that repartitioning is not free, but it can improve overall application performance and parallelism of your jobs.

Custom partitioning

If your jobs are still slow or unstable, you might want to explore performing custom partitioning at the RDD level. This allows you to define a custom partition function that will organize the data across the cluster to a finer level of precision than is available at the DataFrame level. This is very rarely necessary, but it is an option.

User-Defined Functions (UDFs)

In general, avoiding UDFs is a good optimization opportunity. UDFs are expensive because they force representing data as objects in the JVM and sometimes do this multiple times per record in a query. You should try to use the Structured APIs as much as possible to perform your manipulations simply because they are going to perform the transformations in a much more efficient manner than you can do in a high-level language. There is also ongoing work to make data available to UDFs in batches, such as the Vectorized UDF extension for Python that gives your code multiple records at once using a Pandas data frame.

Temporary Data Storage (Caching)

In applications that reuse the same datasets over and over, one of the most useful optimizations is caching.

Caching

Caching will place a DataFrame, table, or RDD into temporary storage (either memory or disk) across the executors in your cluster, and make subsequent reads faster. Caching is a lazy operation.

However, we don’t abuse caching, because caching data incurs a serialization, deserialization, and storage cost.

Example

In an interactive data science session, you might load and clean your data and then reuse it to try multiple statistical models. Or in a standalone application, you might run an iterative algorithm that reuses the same dataset. You can tell Spark to cache a dataset using the cache method on DataFrames or RDDs.

Caching in RDD and Structured API:

• RDD: When we cache an RDD, we cache the actual, physical data (i.e., the bits). When this data is accessed again, Spark returns the proper data. This is done through the RDD reference.
• Structured API: caching is done based on the physical plan. This means that we effectively store the physical plan as our key (as opposed to the object reference) and perform a lookup prior to the execution of a Structured job. There are different storage levels to cache the data:

Storage level	Meaning
MEMORY_ONLY	Store RDD as deserialized Java objects in the JVM. If the RDD does not fit in memory, some partitions will not be cached and will be recomputed on the fly each time they’re needed. This is the default level.
MEMORY_AND_DISK	Store RDD as deserialized Java objects in the JVM. If the RDD does not fit in memory, store the partitions that don’t fit on disk, and read them from there when they’re needed.
MEMORY_ONLY_SER (Java and Scala)	Store RDD as serialized Java objects (one byte array per partition). This is generally more space-efficient than deserialized objects, especially when using a fast serializer, but more CPU-intensive to read.
MEMORY_AND_DISK_SER (Java and Scala)	Similar to MEMORY_ONLY_SER, but spill partitions that don’t fit in memory to disk instead of recomputing them on the fly each time they’re needed.
DISK_ONLY	Store the RDD partitions only on disk.
MEMORY_ONLY_2, MEMORY_AND_DISK_2, etc	Same as the previous levels, but replicate each partition on two cluster nodes.
OFF_HEAP	Similar to MEMORY_ONLY_SER, but store the data in off-heap memory. This requires offheap memory to be enabled.

For more information on these options, take a look at “Configuring Memory Management”. We load an initial DataFrame from a CSV file and then derive some new DataFrames from it using transformations. We can avoid having to recompute the original DataFrame (i.e., load and parse the CSV file) many times by adding a line to cache it along the way.

# in Python
# Original loading code that does *not* cache DataFrame
DF1 = spark.read.format("csv")\
	.option("inferSchema", "true")\
	.option("header", "true")\
	.load("/data/flight-data/csv/2015-summary.csv")

DF2 = DF1.groupBy("DEST_COUNTRY_NAME").count().collect()
DF3 = DF1.groupBy("ORIGIN_COUNTRY_NAME").count().collect()
DF4 = DF1.groupBy("count").count().collect()

You’ll see here that we have our “lazily” created DataFrame (DF1), along with three other DataFrames that access data in DF1. All of our downstream DataFrames share that common parent (DF1) and will repeat the same work when we perform the preceding code. In this case, it’s just reading and parsing the raw CSV data, but that can be a fairly intensive process, especially for large datasets.

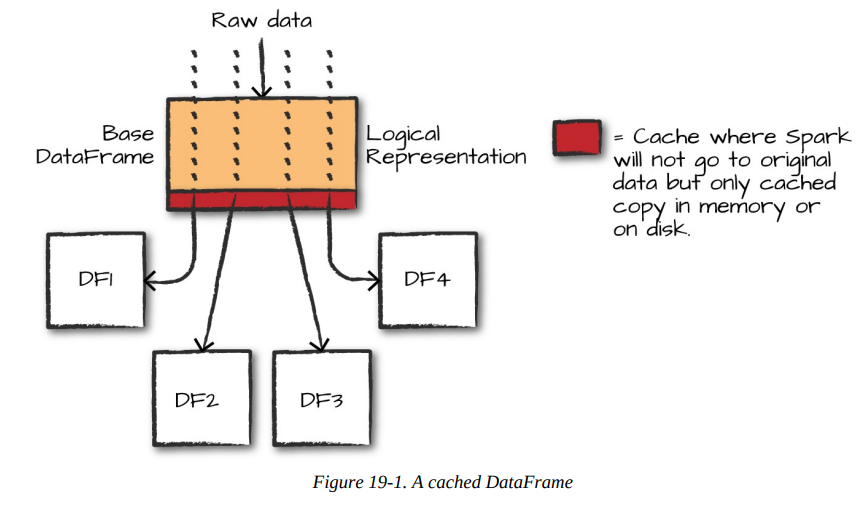

Luckily caching can help speed things up. When we ask for a DataFrame to be cached, Spark will save the data in memory or on disk the first time it computes it. Then, when any other queries come along, they’ll just refer to the one stored in memory as opposed to the original file. You do this using the DataFrame’s cache method:

DF1.cache()
DF1.count()

We used the count above to eagerly cache the data (basically perform an action to force Spark to store it in memory), because caching itself is lazy—the data is cached only on the first time you run an action on the DataFrame. Now that the data is cached, the previous commands will be faster, as we can see by running the following code:

# in Python
DF2 = DF1.groupBy("DEST_COUNTRY_NAME").count().collect()
DF3 = DF1.groupBy("ORIGIN_COUNTRY_NAME").count().collect()
DF4 = DF1.groupBy("count").count().collect()

The cache command in Spark always places data in memory by default, caching only part of the dataset if the cluster’s total memory is full. For more control, there is also a persist method that takes a StorageLevel object to specify where to cache the data: in memory, on disk, or both.

Joins

The biggest weapon you have when it comes to optimizing joins is simply educating yourself about what each join does and how it’s performed. This will help you the most. Additionally, equi-joins are the easiest for Spark to optimize at this point and therefore should be preferred wherever possible. Beyond that, simple things like trying to use the filtering ability of inner joins by changing join ordering can yield large speedups. Additionally, using broadcast join hints can help Spark make intelligent planning decisions when it comes to creating query plans. Avoiding Cartesian joins or even full outer joins is often low-hanging fruit for stability and optimizations because these can often be optimized into different filtering style joins when you look at the entire data flow instead of just that one particular job area.

Collecting statistics and bucketing

Collecting statistics on tables prior to a join will help Spark make intelligent join decisions. Bucketing your data appropriately can also help Spark avoid large shuffles when joins are performed.

Aggregations

For the most part, there are not too many ways that you can optimize specific aggregations beyond filtering data before the aggregation having a sufficiently high number of partitions. However, if you’re using RDDs, controlling exactly how these aggregations are performed (e.g., using reduceByKey when possible over groupByKey) can be very helpful and improve the speed and stability of your code.

Broadcast Variables

The basic premise is that if some large piece of data will be used across multiple UDF calls in your program, you can broadcast it to save just a single read-only copy on each node and avoid re-sending this data with each job.

Example

Broadcast variables may be useful to save a lookup table or a machine learning model.

Conclusion

There are many different ways to optimize the performance of your Spark Applications. In general, the main things you’ll want to prioritize are:

1. reading as little data as possible through partitioning and efficient binary formats.
2. making sure there is sufficient parallellism and no data skew on the cluster using partitioning.
3. using high-level APIs such as the Structured APIs as much as possible to take already optimized code. We should always monitor the Spark Job to figure out jobs, stages or tasks taking the longest time and focus to optimize those.

References

• Spark: The Definitive Guide by Bill Chambers and Matei Zaharia.
